Have you ever wondered why some gravel driveways remain smooth and weed-free for years,while others become uneven and overgrown?The secret often lies beneath the gravel.This comprehensive guide will explain everything you need to know about using geotextile fabric under gravel,from its critical importance to how to choose and install it correctly,helping you complete your project successfully and avoid common mistakes.
Why You Must Use Geotextile Fabric Under Gravel
Geotextile fabric is not just a”layer of cloth”;it’s a professional geosynthetic material that provides four key functions for your gravel project:
Separation:This is the core function.It prevents the gravel from mixing with the soft soil subgrade.Without this barrier,gravel will gradually sink into the dirt under pressure(e.g.,from vehicles),creating an uneven surface.
Stabilization:The fabric helps distribute load pressure(like the weight of a car),significantly increasing bearing capacity and overall stability.This is crucial for high-traffic areas like driveways and parking spots.
Drainage&Filtration:High-quality geotextile allows water to pass through freely while preventing soil particles from clogging the gravel voids.This prevents water pooling and keeps the base dry and solid.
Weed Suppression:It acts as a physical barrier to stop weeds from growing up from the underlying soil into your gravel layer.(Note:It does not prevent seeds blown by the wind from germinating in the top of the gravel.)
How to Choose the right Geotextile Fabric Under Gravel(Woven vs Non-Woven)
Choosing the wrong type of fabric is the most common cause of failure.Never use plastic sheeting or cheap weed barrier cloth!

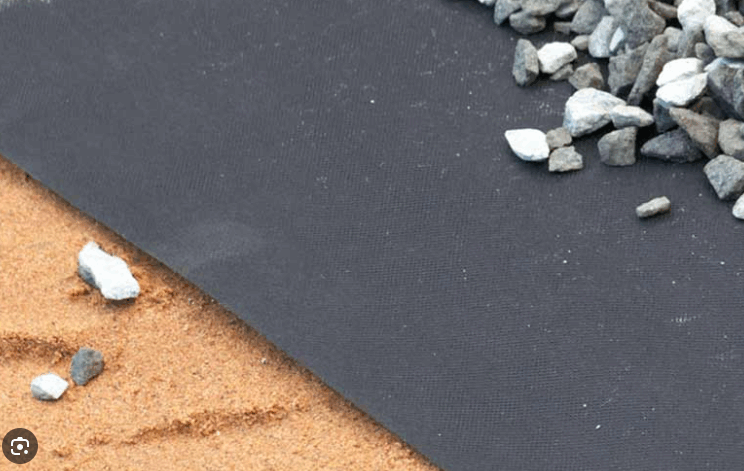

Spunbond Non-Woven Geotextile Fabric:The Top Choice for Gravel
Characteristics:Looks like felt.Made from randomly arranged fibers bonded together.Offers excellent permeability.
Best For:The ideal choice for most gravel projects,including gravel driveways,garden paths,drainage ditches,and backfill.Perfect for separation,drainage,and filtration.
Weight Selection:
For Paths&Walkways:100-150 g/m²(approx.3-4 oz/yd²)
For Driveways&Parking Areas:150-200 g/m²(approx.5-6 oz/yd²)or heavier

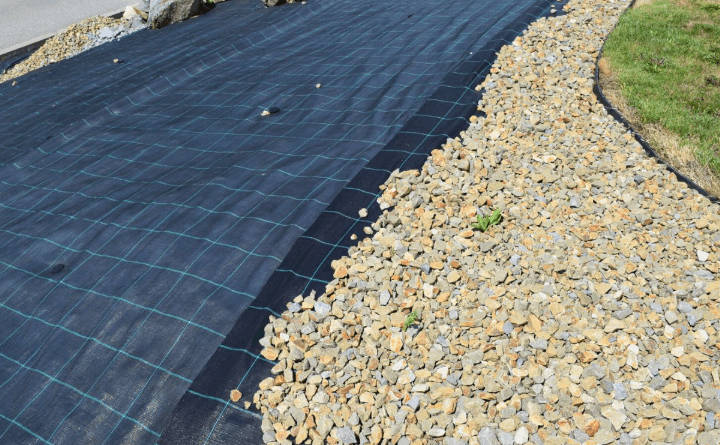

Woven Geotextile Fabric: High-Strength Stabilization
Characteristics:Looks like canvas.Made from woven fibers.Offers high tensile strength but lower permeability.
Best For:Primarily used for heavy-duty stabilization projects requiring extreme load-bearing capacity,like road bases and embankments.Generally not recommended for standard residential gravel projects due to its poorer drainage capabilities.
If you are purchasing Geotextile Fabric Under Gravel, you can contact us!
How to install Geotextile Fabric Under Gravel
Tools and Materials Needed:
Geotextile fabric,gravel,shovel,rake,utility knife,measuring tape,landscape staples(U-pins),gloves,safety glasses.

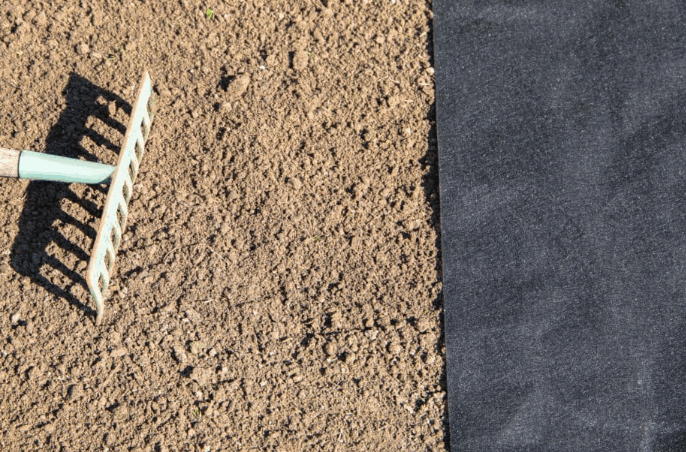

Step 1:Site Preparation
Excavate:Dig to your desired depth.Total depth=compacted gravel thickness+fabric thickness.For example,for 4 inches of gravel,excavate to about 4.5-5 inches deep.
Clear&Level:Remove all sharp objects(roots,rocks)and weeds.Roughly level the area.
Create Slope:Ensure the base has a slight slope(approx.2-3%)for future drainage.
Compact:Use a hand tamper or plate compactor to firmly compact the soil subgrade,creating a solid platform.
Step 2:Laying and Securing the Fabric
Roll Out:Unroll the geotextile and lay it flat over the prepared base.
Overlap Seams:If using multiple rolls,ensure adjacent pieces overlap by at least 6 inches.
Secure:Immediately use landscape staples to pin down the edges and overlaps of the fabric every 3-5 feet to prevent it from shifting or wrinkling during installation.
Trim:Use a utility knife to trim any excess fabric around the edges.

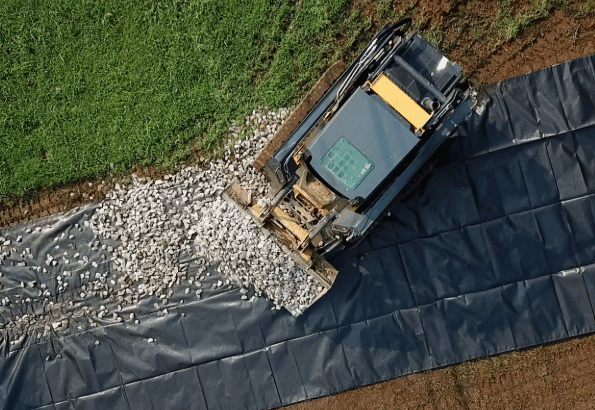

Step 3:Adding and Spreading Gravel
Dump Gravel:Dump the gravel piles on top of the fabric.
Spread:Use a rake to spread the gravel evenly to your desired compacted thickness(a minimum of 4 inches is recommended for driveways).
Compact:Use a plate compactor or a heavy roller to compact the gravel layer.Lightly watering the gravel during compaction can help the particles lock together for a more stable surface.
Frequently Asked Questions About Geotextile Fabric Under Gravel
Q:Which side of the geotextile fabric faces up?
A:Typically,there is no right or wrong side.Both sides are identical and can be used.Simply ensure it is laid flat.
Q:Can I use plastic sheeting instead of geotextile fabric under gravel?
A:Absolutely not.Plastic is impermeable and will trap water under the gravel,leading to a softened subgrade,frost heave,and ultimately,severe structural failure.
Q:How long does landscape fabric under gravel last?
A:A quality non-woven geotextile fabric,when installed correctly,can last for many years or even decades.It is chemically stable and resistant to decay.
Q:Can I lay new fabric and gravel over old gravel?
A:Not recommended.The best practice is to remove the old gravel,level and compact the existing base,and then install new fabric and gravel.Otherwise,you risk perpetuating any existing uneven settlement from the old base.
Conclusion
Using geotextile fabric under gravel is a small investment that makes a huge difference.It significantly extends the life of your project,reduces maintenance,and prevents future headaches.We hope this guide helps you make an informed choice and successfully complete your landscaping project!
If you are looking for a reliable Geotextile Fabric Under Gravel supplier,please feel free to contact us.
