Composite Geomembrane
Material：HDPE
Feature：good anti-seepage performance, high strength, good elongation, acid and alkali resistance, corrosion resistance
Application Field：environmental protection, sanitation, water conservancy engineering, municipal construction engineering, landscaping, greening engineering, petrochemical system, aquaculture industry, salt industry
Shipping Method：logistics
Product Category：Geomembrane

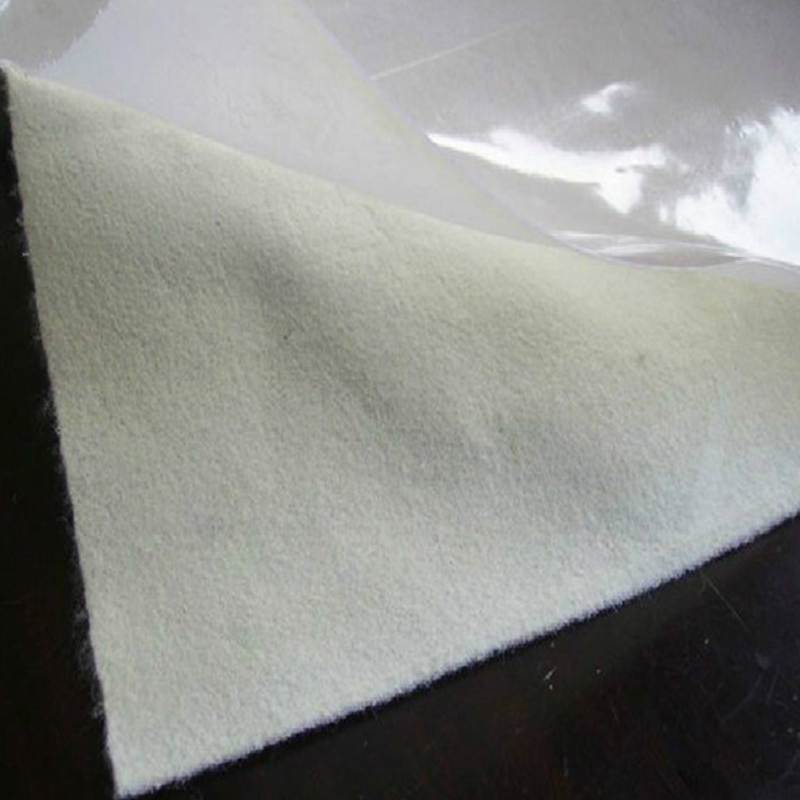

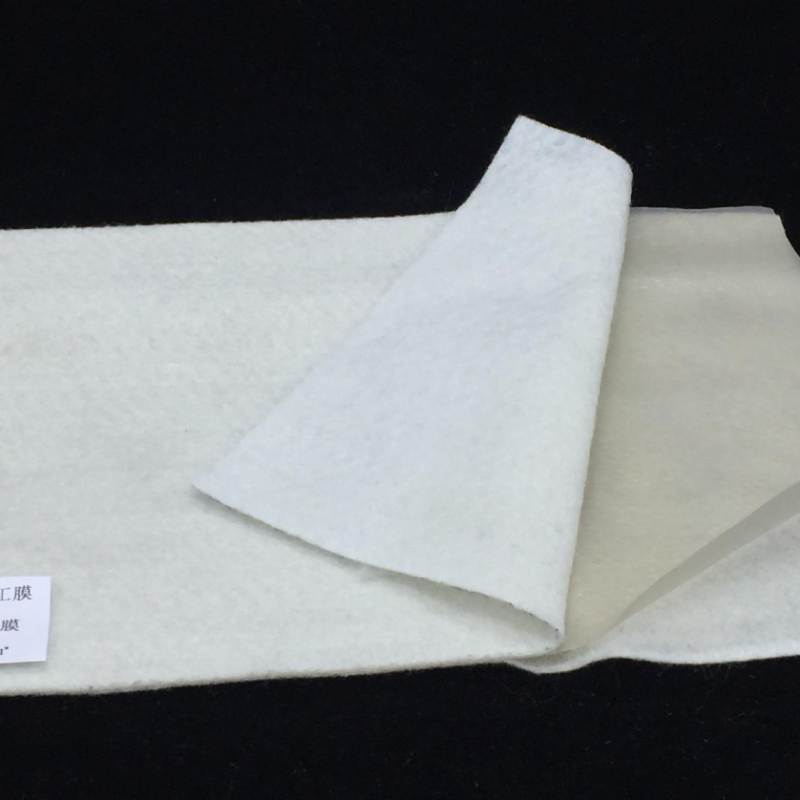

A composite geomembrane (also known as a composite impermeable membrane) is a type of impermeable material manufactured using HDPE as the base layer, combined with geotextile. It can be classified into one fabric one membrane and two fabrics one membrane.
Performance
Composite geomembranes exhibit excellent impermeability, high strength, superior elongation resistance, resistance to acids, alkalis, and corrosion, anti-aging properties, high tensile and tear strength, and outstanding puncture resistance.
Application
It is widely used for impermeability purposes in environmental protection and sanitation (landfills, wastewater treatment ponds), water conservancy projects (artificial lakes, canals, reservoirs), municipal construction projects (underground structures, rooftop gardens, warehouses), landscaping, greening projects, petrochemical systems, aquaculture, and salt industry engineering.
Specifications
| Quality per unit area of the project | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | Remarks |
| Film thickness mm | 0.1-1.0 | ||||||||
| Breaking strength KN/m | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 | Vertical and horizontal directions |
| Elongation rate of cracking (℃) | 300-100 | Vertical and horizontal directions | |||||||
| CBR breaking strength KN ≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
| Tear strength KN ≥ | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 | 0.68 | Vertical and horizontal directions |
| Peel strength N/cm | 6 | Vertical and horizontal directions | |||||||
| Permeability coefficient cm/s | Kx10-11-3 | K=1.0-9.9 | |||||||
