PP Woven Fabric

Material：Polypropylene (PP)
Feature：high tensile strength, high modulus, UV resistant, resistant to acids, alkalis,
Application：civil engineering, hydraulic engineering, transportation engineering
Shipping Method：logistics
Product Category：Geotextile Fabric
Price：The price of polypropylene woven geotextile is not fixed and is influenced by various factors. For more details, please consult us.

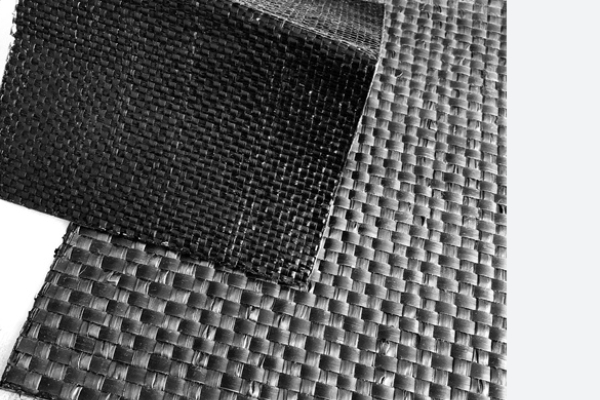

Polypropylene woven geotextile is a permeable geosynthetic material composed of polypropylene (PP) tape yarns woven together in both the lengthwise (warp) and crosswise (weft) directions in a regular pattern. It is characterized by high tensile strength, excellent durability, and stable mechanical properties.

Performance

1、Reinforcement:

Core Performance: PP Woven Geotextile Fabric possesses high tensile strength and tensile modulus.When embedded in soil,it distributes local loads over a wider area and restricts lateral soil movement,thereby enhancing soil stability and load-bearing capacity.Commonly used in reinforced soil walls and soft ground improvement.

2、Separation:

Placed between two dissimilar materials(e.g.,subgrade and soft subsoil,aggregate and soil),it prevents them from mixing.This maintains the integrity and function of each layer,ensuring proper load transfer and extending project service life.

3、Protection:

Due to its high puncture and tensile strength,it acts as a protective cushion by dissipating stress,reducing the risk of puncturing impermeable liners(e.g.,HDPE geomembranes).Also used for erosion control on riverbanks and coasts.

4、Drainage(Planar Flow):

PP Woven Fabric itself has high in-plane permeability,creating drainage channels that allow water to flow within its structure,dissipating pore water pressure and enhancing stability.

5、Durability:

Chemical Resistance: Polypropylene is highly resistant to a wide range of acids,alkalis,salts,and microorganisms,making it suitable for diverse soil and water pH conditions.

UV Resistance: The inclusion of UV stabilizers in the raw material effectively delays degradation under direct sunlight.When buried,its service life can exceed 50 years.

Application

Highways/Railways: Polypropylene woven geotextile fabric is used for soft foundation treatment, roadbed reinforcement, isolation of roadbed and base layer, and prevention of mud overflow.

Embankments&Waterways: Reinforcement and separation in reinforced soil structures,riverbank revetments,and erosion control.

Ports&Airports: Foundation reinforcement for runways,aprons,and storage yards to improve bearing capacity.

Landfills: Serving as a protective layer for HDPE geomembranes against puncture.

Mining: Used in tailings dams and heap leach pads for lining and reinforcement.

Landscaping: PP woven geotextile fabric is used for base isolation and protection of artificial lakes and green belts.

Specifications

We offer a comprehensive range of specifications to meet your project requirements. Our products comply with international standards like ASTM, ISO, and GB/T.

Specification (g/m²)	Wide-Width Tensile Strength, Warp ≥ (kN/m)	Wide-Width Tensile Strength, Weft ≥ (kN/m)	Elongation at Break ≤ (%)	CBR Burst Strength ≥ (kN)	Apparent Opening Size (AOS) O90 (mm)
150	15	12	30	2.2	0.07 – 0.5
200	20	16	30	2.9	0.07 – 0.5
250	25	20	30	3.6	0.07 – 0.5
300	30	24	30	4.3	0.07 – 0.5
400	40	32	30	5.8	0.07 – 0.5
500	50	40	30	7.2	0.07 – 0.5
600	60	48	30	8.6	0.07 – 0.5
